ISCC擂台赛逆向题 Enigma 题解

前言

这题当时赛中很早就写出爆破解密脚本了，但是一直没爆出来，赛后和出题人咨询发现是密文错了，并且发现其实是程序本身出错了，xor 0x10的代码并没有给实际密文数据段进行xor，而是给一个空数据段xor了，所以导致密文没有xor 0x10，所以是错的密文，也就无法爆破。这题本身题目难度还行，WASM逆向+AES魔改+Siphash+排列爆破。

分析

程序流程分析

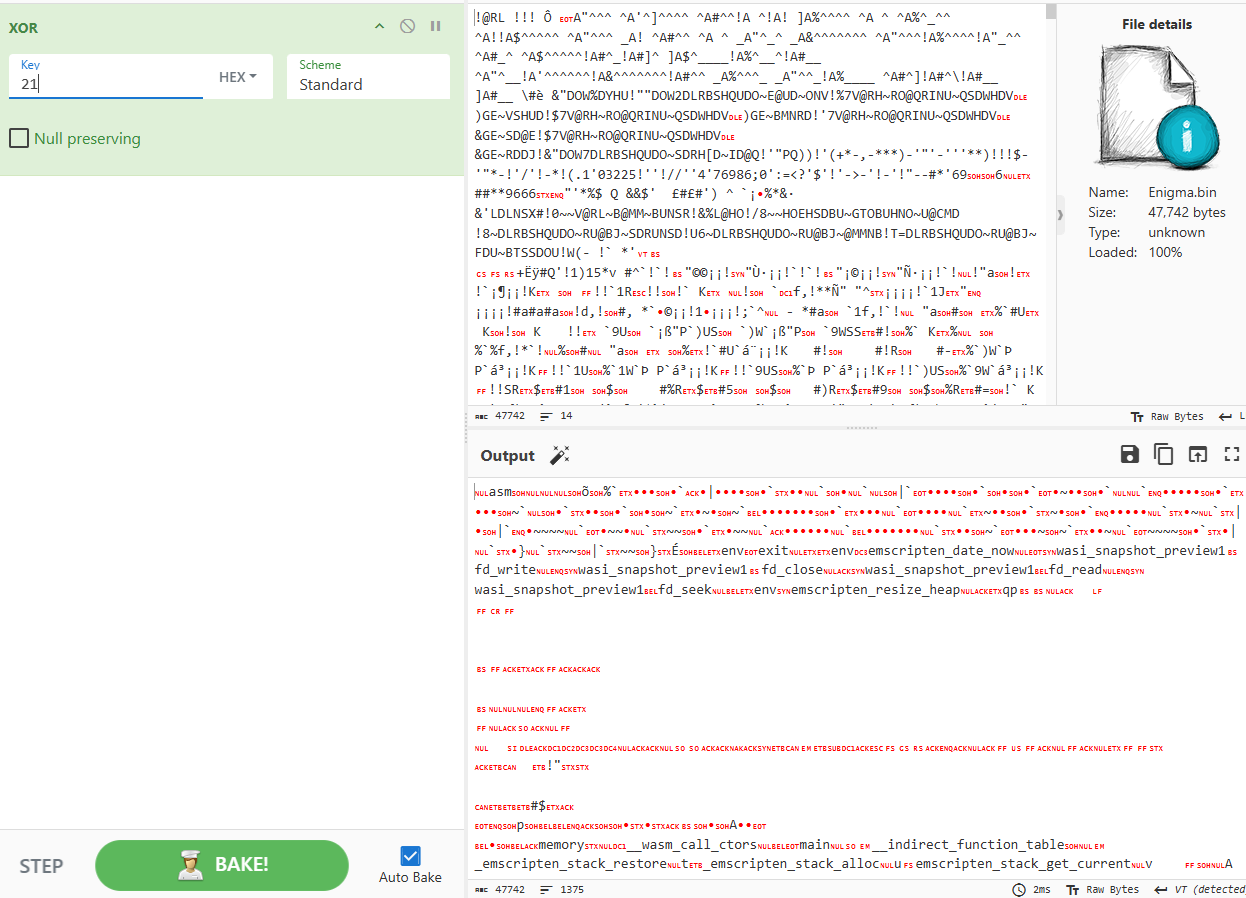

下载得到bin文件，xor 0x21得到wasm程序文件。

这边使用ghidra分析，ghidra插件链接：https://github.com/nneonneo/ghidra-wasm-plugin

从导出表定位到main函数。

第一部分，先输入字符串，然后srand(time(0))，取16个rand()%2，存到b70数组，所以b70是0101的随机排列数组，这边的需要的爆破次数就是2^16。

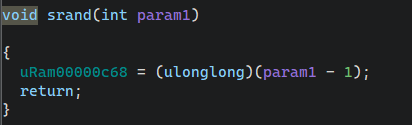

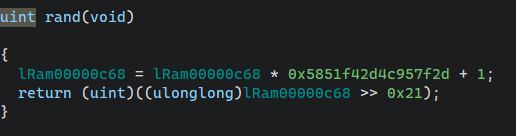

这边提一嘴srand和rand的实现，这样的实现就是对应C语言中的srand和rand，魔数也是很好看出来的，这边代码抄出来就可以用。

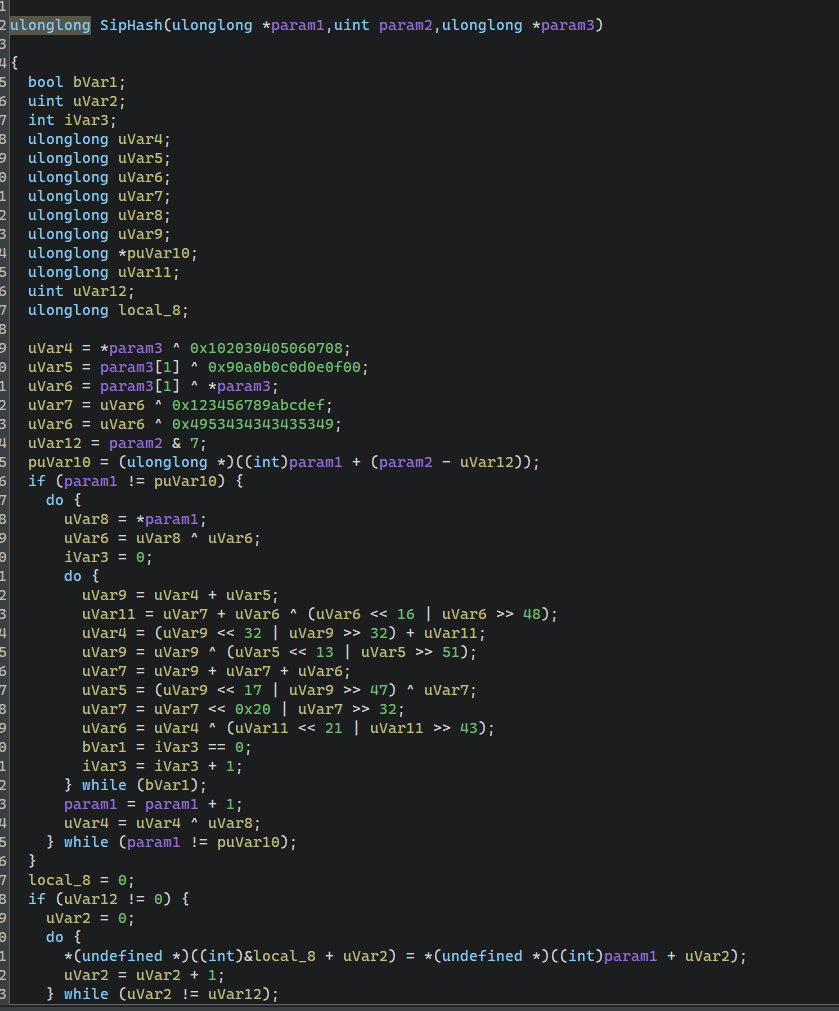

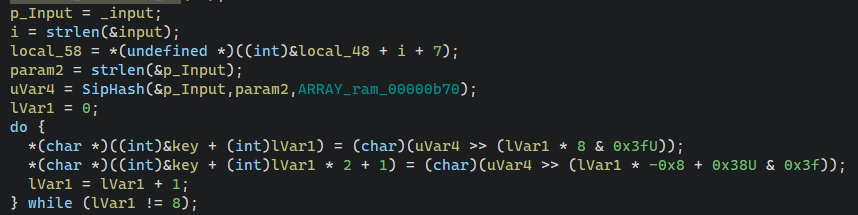

第二部分是将输入字符串取了一部分，然后将b70数组当作密钥，进行SipHash，得到hash值然后扩展成16字节的密钥，这边对输入字符串的操作有点迷惑看不懂，就得开始动调看看实际怎么取的。

这边使用的是TGCTF的index题的wasm环境，只是把里面的wasm调用改成这题的wasm。

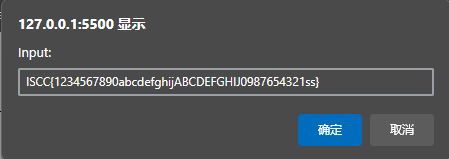

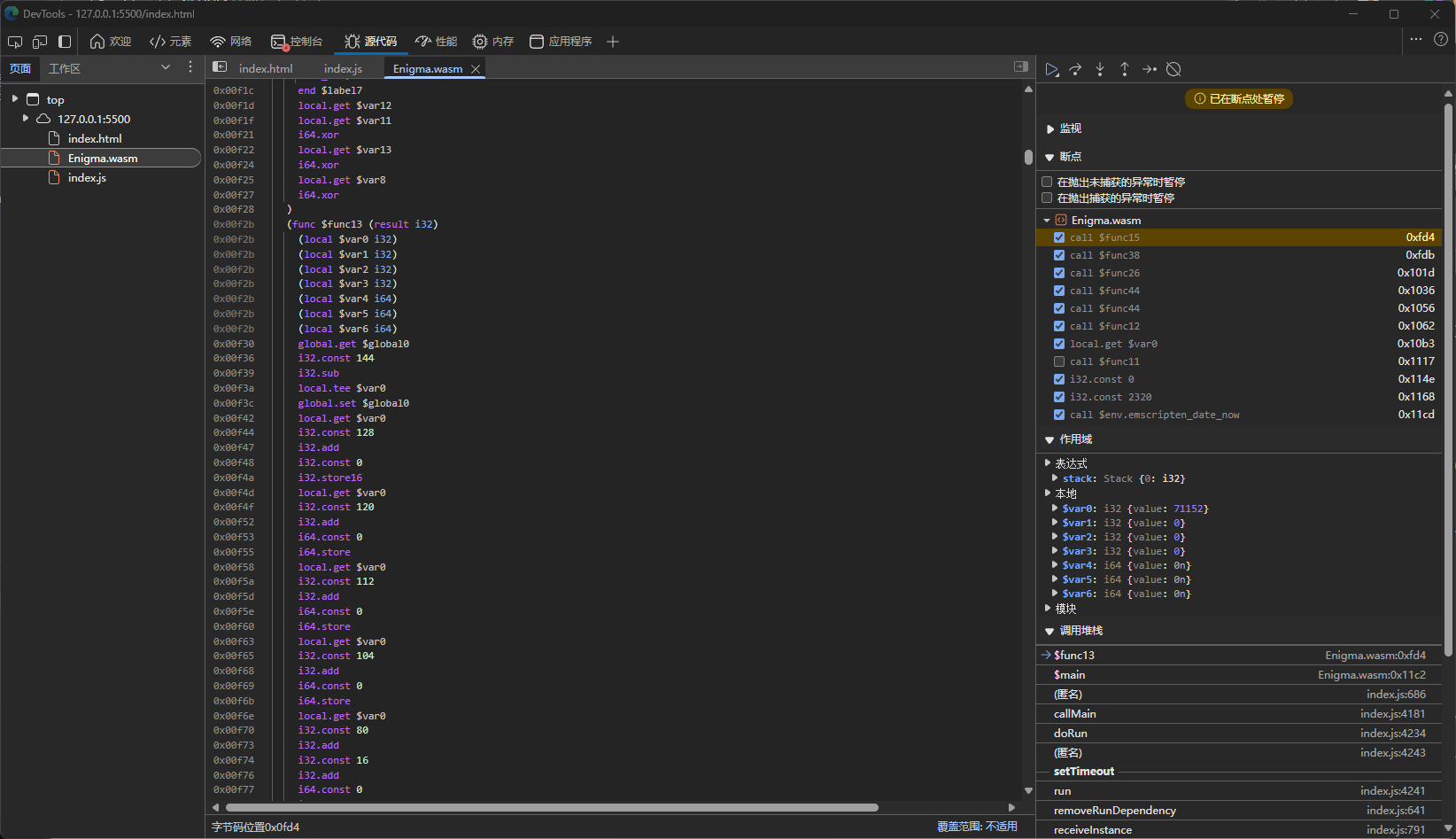

输入48长度字符串，然后点确定再点一下取消，断点到wasm程序，func13就是main函数这边。

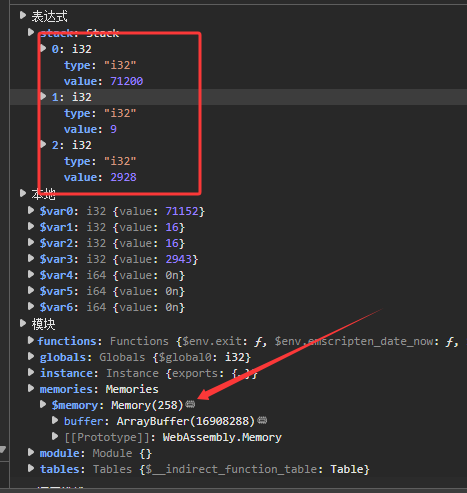

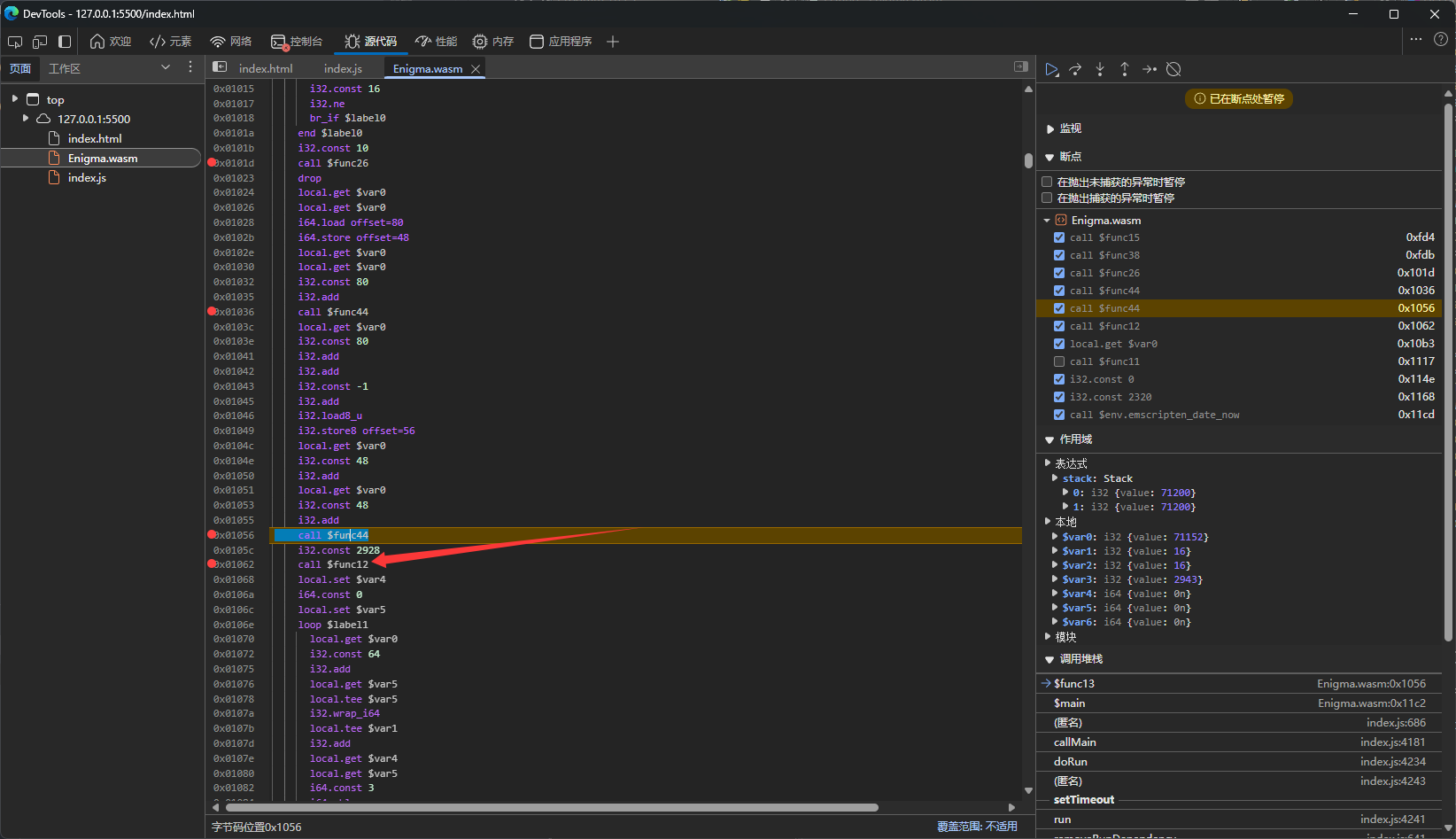

这边调用的func12就是对应SpiHash的call。然后堆栈的三个值就对应SpiHash的三个参数，第一个参数就是要看的传入字符串参数。

将值转到十六进制，点击箭头处的Memory按钮，在Memory窗口转到对应的地址，发现是传入是ISCC{123}，也就是我们输入的字符串前八个字符加最后一个}。

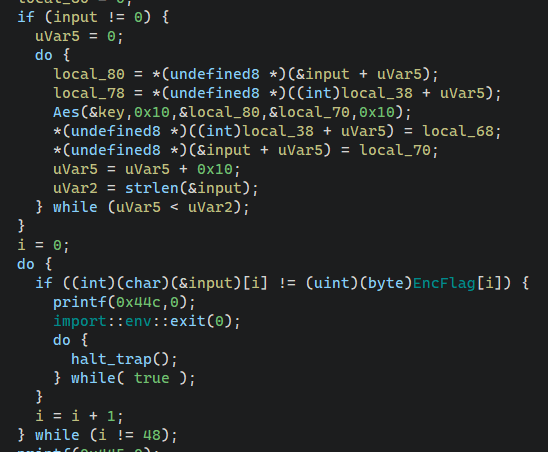

最后一个部分就是将输入字符串用刚刚hash扩展生成的密钥进行AES加密，最后与密文进行比较。

解密流程简述

爆破16大小的01字节数组全排列，爆破三个未知可视字符(32-126)，经过SpiHash然后扩展生成密钥进行AES解密，如果解密出ISCC{}格式字符串，即为爆破解密成功。

总体解密次数是 (2^16)*(95^3) = 56,188,928,000，由于量级过大，考虑使用CUDA进行爆破。

AES魔改分析

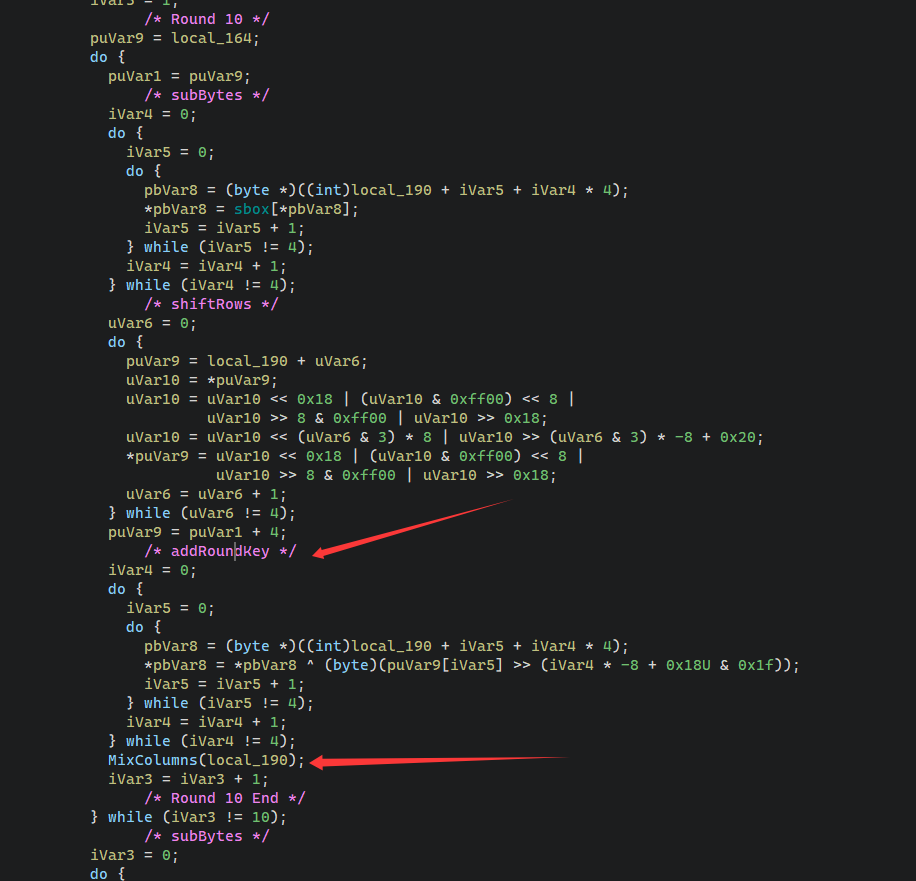

和标准AES代码流程进行对比，分析发现是mixColumns和addRoundKey进行了对调，其他地方都一样。

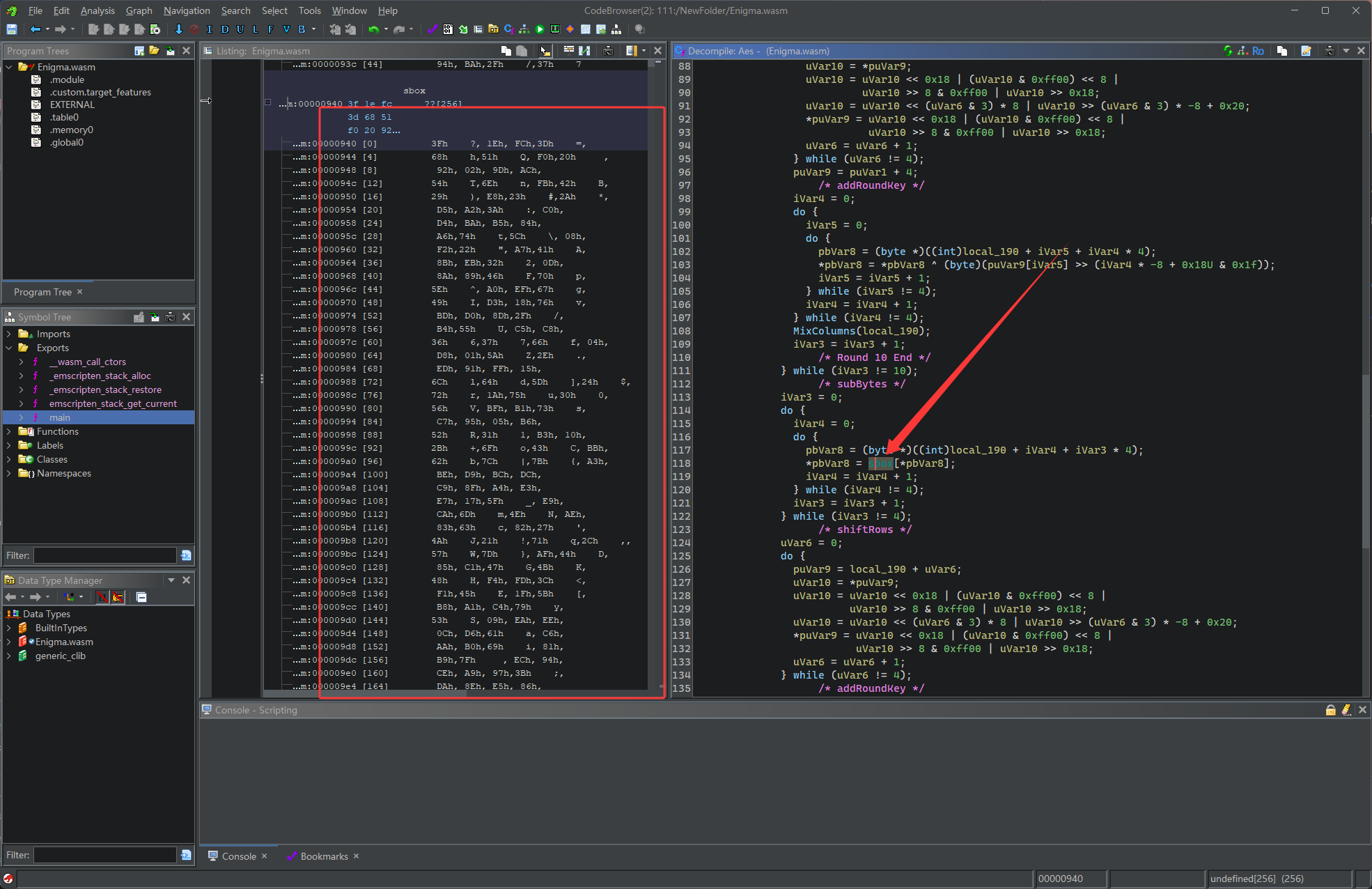

第二个魔改点是Sbox数值的魔改，导出然后手动算出InvSbox即用于解密。解密的时候也同样交换mixColumns和addRoundKey的调用即可。

unsigned char S[256] = { 0x3f, 0x1e, 0xfc, 0x3d, 0x68, 0x51, 0xf0, 0x20, 0x92, 0x02, 0x9d, 0xac, 0x54, 0x6e, 0xfb, 0x42, 0x29, 0xe8, 0x23, 0x2a, 0xd5, 0xa2, 0x3a, 0xc0, 0xd4, 0xba, 0xb5, 0x84, 0xa6, 0x74, 0x5c, 0x08, 0xf2, 0x22, 0xa7, 0x41, 0x8b, 0xeb, 0x32, 0x0d, 0x8a, 0x89, 0x46, 0x70, 0x5e, 0xa0, 0xef, 0x67, 0x49, 0xd3, 0x18, 0x76, 0xbd, 0xd0, 0x8d, 0x2f, 0xb4, 0x55, 0xc5, 0xc8, 0x36, 0x37, 0x66, 0x04, 0xd8, 0x01, 0x5a, 0x2e, 0xed, 0x91, 0xff, 0x15, 0x6c, 0x64, 0x5d, 0x24, 0x72, 0x1a, 0x75, 0x30, 0x56, 0xbf, 0xb1, 0x73, 0xc7, 0x95, 0x05, 0xb6, 0x52, 0x31, 0xb3, 0x10, 0x2b, 0x6f, 0x43, 0xbb, 0x62, 0x7c, 0x7b, 0xa3, 0xbe, 0xd9, 0xbc, 0xdc, 0xc9, 0x8f, 0xa4, 0xe3, 0xe7, 0x17, 0x5f, 0xe9, 0xca, 0x6d, 0x4e, 0xae, 0x83, 0x63, 0x82, 0x27, 0x4a, 0x21, 0x71, 0x2c, 0x57, 0x7d, 0xaf, 0x44, 0x85, 0xc1, 0x47, 0x4b, 0x48, 0xf4, 0xfd, 0x3c, 0xf1, 0x45, 0x1f, 0x5b, 0xb8, 0xa1, 0xc4, 0x79, 0x53, 0x09, 0xea, 0xee, 0x0c, 0xd6, 0x61, 0xc6, 0xaa, 0xb0, 0x69, 0x81, 0xb9, 0x7f, 0xec, 0x94, 0xce, 0xa9, 0x97, 0x3b, 0xda, 0x8e, 0xe5, 0x86, 0x16, 0x11, 0xad, 0xd1, 0xd7, 0x40, 0xb2, 0x65, 0xcb, 0xb7, 0x1c, 0x7a, 0xf6, 0x87, 0xcd, 0x4f, 0x9f, 0xab, 0x4d, 0x0f, 0x6a, 0xa8, 0xde, 0xc3, 0x39, 0x50, 0xfa, 0x35, 0x33, 0x90, 0xdf, 0xf8, 0x25, 0x8c, 0x9c, 0xe0, 0xf7, 0x07, 0xe2, 0x99, 0x77, 0x00, 0x26, 0x6b, 0x0b, 0x3e, 0x1d, 0xe1, 0x58, 0x38, 0xc2, 0x78, 0x0e, 0x59, 0x93, 0x1b, 0x88, 0xdd, 0x9b, 0xd2, 0x19, 0x7e, 0xf9, 0xdb, 0xfe, 0x60, 0x13, 0x4c, 0xcc, 0xf3, 0xa5, 0x14, 0x34, 0x96, 0x80, 0xe6, 0x9a, 0xf5, 0x9e, 0xe4, 0x2d, 0x03, 0x12, 0x0a, 0xcf, 0x98, 0x28, 0x06 };

unsigned char inv_S[] = { 0xD1, 0x41, 0x09, 0xF9, 0x3F, 0x56, 0xFF, 0xCD, 0x1F, 0x91, 0xFB, 0xD4, 0x94, 0x27, 0xDC, 0xBB, 0x5B, 0xA9, 0xFA, 0xEA, 0xEF, 0x47, 0xA8, 0x6D, 0x32, 0xE4, 0x4D, 0xDF, 0xB2, 0xD6, 0x01, 0x8A, 0x07, 0x79, 0x21, 0x12, 0x4B, 0xC8, 0xD2, 0x77, 0xFE, 0x10, 0x13, 0x5C, 0x7B, 0xF8, 0x43, 0x37, 0x4F, 0x59, 0x26, 0xC4, 0xF0, 0xC3, 0x3C, 0x3D, 0xD9, 0xC0, 0x16, 0xA3, 0x87, 0x03, 0xD5, 0x00, 0xAD, 0x23, 0x0F, 0x5E, 0x7F, 0x89, 0x2A, 0x82, 0x84, 0x30, 0x78, 0x83, 0xEB, 0xBA, 0x72, 0xB7, 0xC1, 0x05, 0x58, 0x90, 0x0C, 0x39, 0x50, 0x7C, 0xD8, 0xDD, 0x42, 0x8B, 0x1E, 0x4A, 0x2C, 0x6E, 0xE9, 0x96, 0x60, 0x75, 0x49, 0xAF, 0x3E, 0x2F, 0x04, 0x9A, 0xBC, 0xD3, 0x48, 0x71, 0x0D, 0x5D, 0x2B, 0x7A, 0x4C, 0x53, 0x1D, 0x4E, 0x33, 0xD0, 0xDB, 0x8F, 0xB3, 0x62, 0x61, 0x7D, 0xE5, 0x9D, 0xF2, 0x9B, 0x76, 0x74, 0x1B, 0x80, 0xA7, 0xB5, 0xE0, 0x29, 0x28, 0x24, 0xC9, 0x36, 0xA5, 0x69, 0xC5, 0x45, 0x08, 0xDE, 0x9F, 0x55, 0xF1, 0xA2, 0xFD, 0xCF, 0xF4, 0xE2, 0xCA, 0x0A, 0xF6, 0xB8, 0x2D, 0x8D, 0x15, 0x63, 0x6A, 0xEE, 0x1C, 0x22, 0xBD, 0xA1, 0x98, 0xB9, 0x0B, 0xAA, 0x73, 0x7E, 0x99, 0x52, 0xAE, 0x5A, 0x38, 0x1A, 0x57, 0xB1, 0x8C, 0x9C, 0x19, 0x5F, 0x66, 0x34, 0x64, 0x51, 0x17, 0x81, 0xDA, 0xBF, 0x8E, 0x3A, 0x97, 0x54, 0x3B, 0x68, 0x70, 0xB0, 0xEC, 0xB6, 0xA0, 0xFC, 0x35, 0xAB, 0xE3, 0x31, 0x18, 0x14, 0x95, 0xAC, 0x40, 0x65, 0xA4, 0xE7, 0x67, 0xE1, 0xBE, 0xC6, 0xCB, 0xD7, 0xCE, 0x6B, 0xF7, 0xA6, 0xF3, 0x6C, 0x11, 0x6F, 0x92, 0x25, 0x9E, 0x44, 0x93, 0x2E, 0x06, 0x88, 0x20, 0xED, 0x85, 0xF5, 0xB4, 0xCC, 0xC7, 0xE6, 0xC2, 0x0E, 0x02, 0x86, 0xE8, 0x46 };

错误代码部分

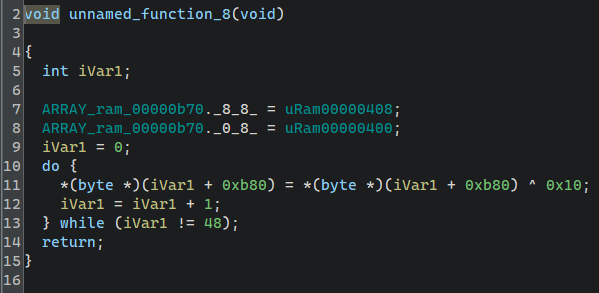

function_8处代码本意是要将静态的明文xor上0x10，但是地址不对，xor到了一个空白的内存，所以解密的时候得把密文都xor 0x10，才能成功爆破出来密钥。

加密同构

#include <iostream>
#include "AES.h"
#include <stdint.h>
#include <Windows.h>

#define _le64toh(x) ((uint64_t)(x))

#define ROTATE(x, b) (uint64_t)( ((x) << (b)) | ( (x) >> (64 - (b))) )

#define HALF_ROUND(a,b,c,d,s,t)			\
	a += b; c += d;				\
	b = ROTATE(b, s) ^ a;			\
	d = ROTATE(d, t) ^ c;			\
	a = ROTATE(a, 32);

#define DOUBLE_ROUND(v0,v1,v2,v3)		\
	HALF_ROUND(v0,v1,v2,v3,13,16);		\
	HALF_ROUND(v2,v1,v0,v3,17,21);		\
	HALF_ROUND(v0,v1,v2,v3,13,16);		\
	HALF_ROUND(v2,v1,v0,v3,17,21);

uint64_t siphash24(const void* src, unsigned long src_sz, const char key[16]) {
	const uint64_t* _key = (uint64_t*)key;
	uint64_t k0 = _le64toh(_key[0]);
	uint64_t k1 = _le64toh(_key[1]);
	uint64_t b = (uint64_t)src_sz << 56;
	const uint64_t* in = (uint64_t*)src;

	uint64_t v0 = k0 ^ 0x102030405060708;
	uint64_t v1 = k1 ^ 0x90a0b0c0d0e0f00;
	uint64_t v2 = k0 ^ k1 ^ 0x123456789abcdef;
	uint64_t v3 = k1 ^ k0 ^ 0x4953434343435349;

	while (src_sz >= 8) {
		uint64_t mi = _le64toh(*in);
		in += 1; src_sz -= 8;
		v3 ^= mi;
		DOUBLE_ROUND(v0, v1, v2, v3);
		v0 ^= mi;
	}

	uint64_t t = 0; uint8_t* pt = (uint8_t*)&t; uint8_t* m = (uint8_t*)in;
	if (src_sz == 7)
	{
		pt[6] = m[6];
	}
	if (src_sz == 6)
	{
		pt[5] = m[5];
	}
	if (src_sz == 5)
	{
		pt[4] = m[4];
	}
	if (src_sz == 4)
	{
		*((uint32_t*)&pt[0]) = *((uint32_t*)&m[0]);
	}
	if (src_sz == 3)
	{
		pt[2] = m[2];
	}
	if (src_sz == 2)
	{
		pt[1] = m[1];
	}
	if (src_sz == 1)
	{
		pt[0] = m[0];
	}
	b |= _le64toh(t);

	v3 ^= b;
	DOUBLE_ROUND(v0, v1, v2, v3);
	v0 ^= b; v2 ^= 0xff;
	DOUBLE_ROUND(v0, v1, v2, v3);
	DOUBLE_ROUND(v0, v1, v2, v3);
	return (v0 ^ v1) ^ (v2 ^ v3);
}

uint64_t lRam00000c68{};

uint32_t my_rand()
{
	lRam00000c68 = lRam00000c68 * 0x5851f42d4c957f2d + 1;
	return (uint32_t)((uint64_t)lRam00000c68 >> 0x21);
}

void my_srand(uint32_t seed)
{
	lRam00000c68 = (uint64_t)(seed - 1);
}

int main()
{
	// 随机数生成列表
	my_srand(1746373320);
	uint8_t rndList[16]{};

	for (int i = 0; i < 16; i++)
	{
		rndList[i] = i;
	}

	for (int i = 0; i < 16; i++)
	{
		rndList[i] += (uint8_t)(my_rand() % 2);
	}

	// 输入48长度
	uint8_t input[] = "ISCC{1234123544556ASDASeffgghhiijj12321312312kk}";
	uint8_t out[16]{};

	// hash明文取input前八字节和最后一个字节
	uint8_t hash_plaintext[9]{};
	memcpy(hash_plaintext, input, 8);
	hash_plaintext[8] = '}';

	// spihash计算
	uint64_t hash = siphash24(hash_plaintext, 9, (const char*)rndList);

	// 用hash生成Key
	uint8_t key[16]{};
	for (int i = 0; i < 8; i++)
	{
		key[i] = (uint8_t)(hash >> (i * 8 & 0x3f));
		key[i * 2 + 1] = (uint8_t)(hash >> (i * -8 + 0x38 & 0x3f));
	}

	for (int i = 0; i < 48; i += 16)
	{
		aesEncrypt(key, 16, input + i, out, 16);
		for (int i = 0; i < 16; i++)
		{
			printf("0x%02x,", out[i]);
		}
	}

	return 0;
}

AES魔改后解密代码：

代码基于：https://github.com/lmshao/AES

unsigned char inv_S[] = { 0xD1, 0x41, 0x09, 0xF9, 0x3F, 0x56, 0xFF, 0xCD, 0x1F, 0x91, 0xFB, 0xD4, 0x94, 0x27, 0xDC, 0xBB, 0x5B, 0xA9, 0xFA, 0xEA, 0xEF, 0x47, 0xA8, 0x6D, 0x32, 0xE4, 0x4D, 0xDF, 0xB2, 0xD6, 0x01, 0x8A, 0x07, 0x79, 0x21, 0x12, 0x4B, 0xC8, 0xD2, 0x77, 0xFE, 0x10, 0x13, 0x5C, 0x7B, 0xF8, 0x43, 0x37, 0x4F, 0x59, 0x26, 0xC4, 0xF0, 0xC3, 0x3C, 0x3D, 0xD9, 0xC0, 0x16, 0xA3, 0x87, 0x03, 0xD5, 0x00, 0xAD, 0x23, 0x0F, 0x5E, 0x7F, 0x89, 0x2A, 0x82, 0x84, 0x30, 0x78, 0x83, 0xEB, 0xBA, 0x72, 0xB7, 0xC1, 0x05, 0x58, 0x90, 0x0C, 0x39, 0x50, 0x7C, 0xD8, 0xDD, 0x42, 0x8B, 0x1E, 0x4A, 0x2C, 0x6E, 0xE9, 0x96, 0x60, 0x75, 0x49, 0xAF, 0x3E, 0x2F, 0x04, 0x9A, 0xBC, 0xD3, 0x48, 0x71, 0x0D, 0x5D, 0x2B, 0x7A, 0x4C, 0x53, 0x1D, 0x4E, 0x33, 0xD0, 0xDB, 0x8F, 0xB3, 0x62, 0x61, 0x7D, 0xE5, 0x9D, 0xF2, 0x9B, 0x76, 0x74, 0x1B, 0x80, 0xA7, 0xB5, 0xE0, 0x29, 0x28, 0x24, 0xC9, 0x36, 0xA5, 0x69, 0xC5, 0x45, 0x08, 0xDE, 0x9F, 0x55, 0xF1, 0xA2, 0xFD, 0xCF, 0xF4, 0xE2, 0xCA, 0x0A, 0xF6, 0xB8, 0x2D, 0x8D, 0x15, 0x63, 0x6A, 0xEE, 0x1C, 0x22, 0xBD, 0xA1, 0x98, 0xB9, 0x0B, 0xAA, 0x73, 0x7E, 0x99, 0x52, 0xAE, 0x5A, 0x38, 0x1A, 0x57, 0xB1, 0x8C, 0x9C, 0x19, 0x5F, 0x66, 0x34, 0x64, 0x51, 0x17, 0x81, 0xDA, 0xBF, 0x8E, 0x3A, 0x97, 0x54, 0x3B, 0x68, 0x70, 0xB0, 0xEC, 0xB6, 0xA0, 0xFC, 0x35, 0xAB, 0xE3, 0x31, 0x18, 0x14, 0x95, 0xAC, 0x40, 0x65, 0xA4, 0xE7, 0x67, 0xE1, 0xBE, 0xC6, 0xCB, 0xD7, 0xCE, 0x6B, 0xF7, 0xA6, 0xF3, 0x6C, 0x11, 0x6F, 0x92, 0x25, 0x9E, 0x44, 0x93, 0x2E, 0x06, 0x88, 0x20, 0xED, 0x85, 0xF5, 0xB4, 0xCC, 0xC7, 0xE6, 0xC2, 0x0E, 0x02, 0x86, 0xE8, 0x46 };

int aesDecrypt(const uint8_t *key, uint32_t keyLen, const uint8_t *ct, uint8_t *pt, uint32_t len)
{
    AesKey aesKey;
    uint8_t *pos = pt;
    const uint32_t *rk = aesKey.dK;
    uint8_t out[BLOCKSIZE] = {0};
    uint8_t actualKey[16] = {0};
    uint8_t state[4][4] = {0};

    memcpy(actualKey, key, keyLen);
    keyExpansion(actualKey, 16, &aesKey);

    for (int i = 0; i < len; i += BLOCKSIZE) {
        loadStateArray(state, ct);
        addRoundKey(state, rk);
        for (int j = 1; j < 10; ++j) {
            rk += 4;
            invShiftRows(state);
            invSubBytes(state);
            // 解密交换addRoundKey和invMixColumns的调用顺序
            invMixColumns(state);
            addRoundKey(state, rk);
        }
        invSubBytes(state);
        invShiftRows(state);
        addRoundKey(state, rk+4);

        storeStateArray(state, pos);
        pos += BLOCKSIZE;
        ct += BLOCKSIZE;
        rk = aesKey.dK;
    }
    return 0;
}

CPU爆破样板代码

void Crack(uint8_t* KeyOut)
{
    // 密文
	uint8_t enc1[48]{0x9f, 0xb3, 0xb8, 0x2f, 0x23, 0x82, 0x19, 0x7d, 0xe7, 0x2a, 0x8b, 0x20, 0x0c, 0x5b, 0x79, 0x72, 0xf7, 0x07, 0xa0, 0x63, 0x53, 0x99, 0x49, 0xc2, 0x51, 0xde, 0x86, 0x1b, 0x87, 0x2f, 0x31, 0x6b, 0xbc, 0xfa, 0x5b, 0x9a, 0x6b, 0x12, 0x16, 0x8b, 0x31, 0xf6, 0x6c, 0x1d, 0x94, 0xba, 0x2f, 0x37 };
    // 解密明文
	uint8_t out[16]{};
    // 爆破三个字节全排列
	for (int c1 = 32; c1 < 127; c1++)
	{
		for (int c2 = 32; c2 < 127; c2++)
		{
			for (int c3 = 32; c3 < 127; c3++)
			{
                // 爆破16个01的全排列
				for (int rnd_v = 0; rnd_v < 0xffff; rnd_v++)
				{
					uint8_t rndList[16]{ };
					for (int i = 0; i < 16; i++)
						rndList[i] = i;

					for (int i = 0; i < 16; i++)
					{
						rndList[i] += (rnd_v >> (15-i)) & 1;
					}

                    // 组合目标hash字符串
					uint8_t hash_plaintext[] = "ISCC{xxx}";
					hash_plaintext[5] = c1;
					hash_plaintext[6] = c2;
					hash_plaintext[7] = c3;

					uint64_t hash = siphash24(hash_plaintext, 9, (const char*)rndList);

                    // 扩展生成Key
					uint8_t key[16]{};
					for (int i = 0; i < 8; i++)
					{
						key[i] = (uint8_t)(hash >> (i * 8 & 0x3f));
						key[i * 2 + 1] = (uint8_t)(hash >> (i * -8 + 0x38 & 0x3f));
					}
                    // 仅解密前16字节用于校验Key
					aesDecrypt(key, 16, enc1, out, 16);

					if (out[0] == 'I' && out[1] == 'S' && out[2] == 'C' && out[3] == 'C')
					{
						memcpy(KeyOut, key, 16);
						for (int i = 0; i < 16; i++)
						{
							printf("%x ", key[i]);
						}
						printf("\n");
						return;
					}
				}
			}
		}
	}
}

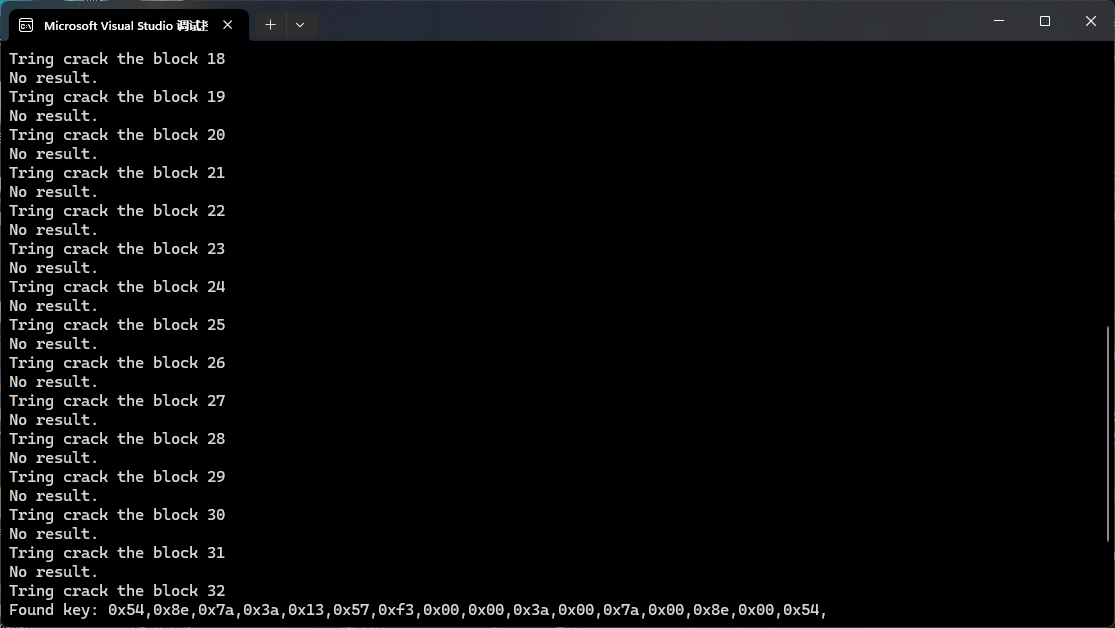

CPU爆破代码转CUDA爆破代码

#include <iostream>
#include "cuda_runtime.h"
#include "device_launch_parameters.h"
// 密文
__constant__ uint8_t EncFlag[48];
// 逆sbox
__constant__ uint8_t inv_S[256];
// sbox
__constant__ uint8_t S[256];
// 轮常量
__constant__ uint32_t rcon[10];
// hash明文模板
__constant__ uint8_t hash_plaintext_template[10];

uint8_t inv_S_user[256] {
	0xD1, 0x41, 0x09, 0xF9, 0x3F, 0x56, 0xFF, 0xCD, 0x1F, 0x91, 0xFB, 0xD4, 0x94, 0x27, 0xDC, 0xBB,
	0x5B, 0xA9, 0xFA, 0xEA, 0xEF, 0x47, 0xA8, 0x6D, 0x32, 0xE4, 0x4D, 0xDF, 0xB2, 0xD6, 0x01, 0x8A,
	0x07, 0x79, 0x21, 0x12, 0x4B, 0xC8, 0xD2, 0x77, 0xFE, 0x10, 0x13, 0x5C, 0x7B, 0xF8, 0x43, 0x37,
	0x4F, 0x59, 0x26, 0xC4, 0xF0, 0xC3, 0x3C, 0x3D, 0xD9, 0xC0, 0x16, 0xA3, 0x87, 0x03, 0xD5, 0x00,
	0xAD, 0x23, 0x0F, 0x5E, 0x7F, 0x89, 0x2A, 0x82, 0x84, 0x30, 0x78, 0x83, 0xEB, 0xBA, 0x72, 0xB7,
	0xC1, 0x05, 0x58, 0x90, 0x0C, 0x39, 0x50, 0x7C, 0xD8, 0xDD, 0x42, 0x8B, 0x1E, 0x4A, 0x2C, 0x6E,
	0xE9, 0x96, 0x60, 0x75, 0x49, 0xAF, 0x3E, 0x2F, 0x04, 0x9A, 0xBC, 0xD3, 0x48, 0x71, 0x0D, 0x5D,
	0x2B, 0x7A, 0x4C, 0x53, 0x1D, 0x4E, 0x33, 0xD0, 0xDB, 0x8F, 0xB3, 0x62, 0x61, 0x7D, 0xE5, 0x9D,
	0xF2, 0x9B, 0x76, 0x74, 0x1B, 0x80, 0xA7, 0xB5, 0xE0, 0x29, 0x28, 0x24, 0xC9, 0x36, 0xA5, 0x69,
	0xC5, 0x45, 0x08, 0xDE, 0x9F, 0x55, 0xF1, 0xA2, 0xFD, 0xCF, 0xF4, 0xE2, 0xCA, 0x0A, 0xF6, 0xB8,
	0x2D, 0x8D, 0x15, 0x63, 0x6A, 0xEE, 0x1C, 0x22, 0xBD, 0xA1, 0x98, 0xB9, 0x0B, 0xAA, 0x73, 0x7E,
	0x99, 0x52, 0xAE, 0x5A, 0x38, 0x1A, 0x57, 0xB1, 0x8C, 0x9C, 0x19, 0x5F, 0x66, 0x34, 0x64, 0x51,
	0x17, 0x81, 0xDA, 0xBF, 0x8E, 0x3A, 0x97, 0x54, 0x3B, 0x68, 0x70, 0xB0, 0xEC, 0xB6, 0xA0, 0xFC,
	0x35, 0xAB, 0xE3, 0x31, 0x18, 0x14, 0x95, 0xAC, 0x40, 0x65, 0xA4, 0xE7, 0x67, 0xE1, 0xBE, 0xC6,
	0xCB, 0xD7, 0xCE, 0x6B, 0xF7, 0xA6, 0xF3, 0x6C, 0x11, 0x6F, 0x92, 0x25, 0x9E, 0x44, 0x93, 0x2E,
	0x06, 0x88, 0x20, 0xED, 0x85, 0xF5, 0xB4, 0xCC, 0xC7, 0xE6, 0xC2, 0x0E, 0x02, 0x86, 0xE8, 0x46
};

uint8_t S_user[256]{
	0x3f, 0x1e, 0xfc, 0x3d, 0x68, 0x51, 0xf0, 0x20, 0x92, 0x02, 0x9d, 0xac, 0x54, 0x6e, 0xfb, 0x42,
	0x29, 0xe8, 0x23, 0x2a, 0xd5, 0xa2, 0x3a, 0xc0, 0xd4, 0xba, 0xb5, 0x84, 0xa6, 0x74, 0x5c, 0x08,
	0xf2, 0x22, 0xa7, 0x41, 0x8b, 0xeb, 0x32, 0x0d, 0x8a, 0x89, 0x46, 0x70, 0x5e, 0xa0, 0xef, 0x67,
	0x49, 0xd3, 0x18, 0x76, 0xbd, 0xd0, 0x8d, 0x2f, 0xb4, 0x55, 0xc5, 0xc8, 0x36, 0x37, 0x66, 0x04,
	0xd8, 0x01, 0x5a, 0x2e, 0xed, 0x91, 0xff, 0x15, 0x6c, 0x64, 0x5d, 0x24, 0x72, 0x1a, 0x75, 0x30,
	0x56, 0xbf, 0xb1, 0x73, 0xc7, 0x95, 0x05, 0xb6, 0x52, 0x31, 0xb3, 0x10, 0x2b, 0x6f, 0x43, 0xbb,
	0x62, 0x7c, 0x7b, 0xa3, 0xbe, 0xd9, 0xbc, 0xdc, 0xc9, 0x8f, 0xa4, 0xe3, 0xe7, 0x17, 0x5f, 0xe9,
	0xca, 0x6d, 0x4e, 0xae, 0x83, 0x63, 0x82, 0x27, 0x4a, 0x21, 0x71, 0x2c, 0x57, 0x7d, 0xaf, 0x44,
	0x85, 0xc1, 0x47, 0x4b, 0x48, 0xf4, 0xfd, 0x3c, 0xf1, 0x45, 0x1f, 0x5b, 0xb8, 0xa1, 0xc4, 0x79,
	0x53, 0x09, 0xea, 0xee, 0x0c, 0xd6, 0x61, 0xc6, 0xaa, 0xb0, 0x69, 0x81, 0xb9, 0x7f, 0xec, 0x94,
	0xce, 0xa9, 0x97, 0x3b, 0xda, 0x8e, 0xe5, 0x86, 0x16, 0x11, 0xad, 0xd1, 0xd7, 0x40, 0xb2, 0x65,
	0xcb, 0xb7, 0x1c, 0x7a, 0xf6, 0x87, 0xcd, 0x4f, 0x9f, 0xab, 0x4d, 0x0f, 0x6a, 0xa8, 0xde, 0xc3,
	0x39, 0x50, 0xfa, 0x35, 0x33, 0x90, 0xdf, 0xf8, 0x25, 0x8c, 0x9c, 0xe0, 0xf7, 0x07, 0xe2, 0x99,
	0x77, 0x00, 0x26, 0x6b, 0x0b, 0x3e, 0x1d, 0xe1, 0x58, 0x38, 0xc2, 0x78, 0x0e, 0x59, 0x93, 0x1b,
	0x88, 0xdd, 0x9b, 0xd2, 0x19, 0x7e, 0xf9, 0xdb, 0xfe, 0x60, 0x13, 0x4c, 0xcc, 0xf3, 0xa5, 0x14,
	0x34, 0x96, 0x80, 0xe6, 0x9a, 0xf5, 0x9e, 0xe4, 0x2d, 0x03, 0x12, 0x0a, 0xcf, 0x98, 0x28, 0x06
};


uint32_t rcon_user[10]{
	 0x01000000UL, 0x02000000UL, 0x04000000UL, 0x08000000UL, 0x10000000UL,
	 0x20000000UL, 0x40000000UL, 0x80000000UL, 0x1B000000UL, 0x36000000UL
};
#define LOAD32H(x, y) do { \
    uint32_t _temp = 0; \
    _temp  = ((uint32_t)((y)[0] & 0xFF) << 24); \
    _temp |= ((uint32_t)((y)[1] & 0xFF) << 16); \
    _temp |= ((uint32_t)((y)[2] & 0xFF) << 8); \
    _temp |= ((uint32_t)((y)[3] & 0xFF)); \
    (x) = _temp; \
} while(0)

#define STORE32H(x, y) \
   (y)[0] = (uint8_t)(((x)>>24) & 0xff); (y)[1] = (uint8_t)(((x)>>16) & 0xff);   \
       (y)[2] = (uint8_t)(((x)>>8) & 0xff); (y)[3] = (uint8_t)((x) & 0xff);

#define BYTE(x, n) (((x) >> (8 * (n))) & 0xff)

#define MIX(x) (((S[BYTE(x, 2)] << 24) & 0xff000000) ^ ((S[BYTE(x, 1)] << 16) & 0xff0000) ^ \
                ((S[BYTE(x, 0)] << 8) & 0xff00) ^ (S[BYTE(x, 3)] & 0xff))

#define ROF32(x, n)  (((x) << (n)) | ((x) >> (32-(n))))

#define ROR32(x, n)  (((x) >> (n)) | ((x) << (32-(n))))

__device__ uint32_t MixWord(uint32_t x, const uint8_t* LocalS) {
	union {
		uint32_t word;
		uint8_t bytes[4];
	} in, out;

	in.word = x;

	out.bytes[0] = LocalS[in.bytes[1]];  // BYTE(x, 1)
	out.bytes[1] = LocalS[in.bytes[0]];  // BYTE(x, 0)
	out.bytes[2] = LocalS[in.bytes[3]];  // BYTE(x, 3)
	out.bytes[3] = LocalS[in.bytes[2]];  // BYTE(x, 2)

	return ((uint32_t)out.bytes[3] << 24) |
		((uint32_t)out.bytes[2] << 16) |
		((uint32_t)out.bytes[1] << 8) |
		((uint32_t)out.bytes[0]);
}


__device__ int keyExpansion(const uint8_t * key, uint32_t keyLen, void * aesKey)
{
	typedef struct {
		uint32_t eK[44], dK[44];
		int Nr;
	}AesKey;
	AesKey* p_aesKey = (AesKey*)aesKey;
	uint32_t* w = p_aesKey->eK;
	uint32_t* v = p_aesKey->dK;

	for (int i = 0; i < 4; ++i) {
		LOAD32H(w[i], key + 4 * i);
	}

	for (int i = 0; i < 10; ++i) {
		w[4] = w[0] ^ MIX(w[3]) ^ rcon[i];
		w[5] = w[1] ^ w[4];
		w[6] = w[2] ^ w[5];
		w[7] = w[3] ^ w[6];
		w += 4;
	}

	w = p_aesKey->eK + 44 - 4;
	for (int j = 0; j < 11; ++j) {

		for (int i = 0; i < 4; ++i) {
			v[i] = w[i];
		}
		w -= 4;
		v += 4;
	}

	return 0;
}

__device__ int loadStateArray(uint8_t(*state)[4], const uint8_t* in) {
	for (int i = 0; i < 4; ++i) {
		for (int j = 0; j < 4; ++j) {
			state[j][i] = *in++;
		}
	}
	return 0;
}

__device__ int storeStateArray(uint8_t(*state)[4], uint8_t* out) {
	for (int i = 0; i < 4; ++i) {
		for (int j = 0; j < 4; ++j) {
			*out++ = state[j][i];
		}
	}
	return 0;
}

__device__ int addRoundKey(uint8_t(*state)[4], const uint32_t* key) {

	uint8_t k[4][4];

	for (int i = 0; i < 4; ++i) {
		for (int j = 0; j < 4; ++j) {
			k[i][j] = (uint8_t)BYTE(key[j], 3 - i);
			state[i][j] ^= k[i][j];
		}
	}

	return 0;
}


__device__ int invSubBytes(uint8_t(*state)[4]) {
	uint8_t LocalInvS[256];
	for (int i = 0; i < 256; i++) {
		LocalInvS[i] = inv_S[i];
	}
	for (int i = 0; i < 4; ++i) {
		for (int j = 0; j < 4; ++j) {
			state[i][j] = LocalInvS[state[i][j]];
		}
	}
	return 0;
}

__device__ int invShiftRows(uint8_t(*state)[4]) {
	uint8_t temp[4][4];

	for (int i = 0; i < 4; i++) {
		for (int j = 0; j < 4; j++) {
			temp[i][j] = state[i][j];
		}
	}

	state[0][0] = temp[0][0];
	state[0][1] = temp[0][1];
	state[0][2] = temp[0][2];
	state[0][3] = temp[0][3];

	state[1][0] = temp[1][3];
	state[1][1] = temp[1][0];
	state[1][2] = temp[1][1];
	state[1][3] = temp[1][2];

	state[2][0] = temp[2][2];
	state[2][1] = temp[2][3];
	state[2][2] = temp[2][0];
	state[2][3] = temp[2][1];

	state[3][0] = temp[3][1];
	state[3][1] = temp[3][2];
	state[3][2] = temp[3][3];
	state[3][3] = temp[3][0];

	return 0;
}

__device__ uint8_t GMul(uint8_t u, uint8_t v) {
	uint8_t p = 0;
	for (int i = 0; i < 8; ++i) {
		if (u & 0x01) {
			p ^= v;
		}

		int flag = (v & 0x80);
		v <<= 1;
		if (flag) {
			v ^= 0x1B;
		}

		u >>= 1;
	}

	return p;
}

__device__ int invMixColumns(uint8_t(*state)[4]) {

	uint8_t M[4][4] = { {0x0E, 0x0B, 0x0D, 0x09},
					   {0x09, 0x0E, 0x0B, 0x0D},
					   {0x0D, 0x09, 0x0E, 0x0B},
					   {0x0B, 0x0D, 0x09, 0x0E} };
	uint8_t tmp[4][4]{};
	for (int i = 0; i < 4; ++i) {
		for (int j = 0; j < 4; ++j) {
			tmp[i][j] = state[i][j];
		}
	}
	for (int i = 0; i < 4; ++i) {
		for (int j = 0; j < 4; ++j) {
			state[i][j] =
				GMul(M[i][0], tmp[0][j])
				^ GMul(M[i][1], tmp[1][j])
				^ GMul(M[i][2], tmp[2][j])
				^ GMul(M[i][3], tmp[3][j]);
		}
	}

	return 0;
}

__device__ int aesDecrypt(const uint8_t* key, uint32_t keyLen, const uint8_t* ct, uint8_t* pt, uint32_t len)
{
	typedef struct {
		uint32_t eK[44]{}, dK[44]{};
		int Nr;
	}AesKey;

	AesKey aesKey;
	uint8_t* pos = pt;

	uint8_t state[4][4];

	keyExpansion(key, 16, &aesKey);
	const uint32_t* rk = aesKey.dK;

	loadStateArray(state, ct);
	addRoundKey(state, rk);
#pragma unroll
	for (int i = 1; i < 10; i++)
	{
		rk += 4;
		invShiftRows(state);
		invSubBytes(state);
		// 解密同样交换addRoundKey和invMixColumns的调用顺序
		invMixColumns(state);
		addRoundKey(state, rk);

	}
	invSubBytes(state);
	invShiftRows(state);
	addRoundKey(state, rk + 4);

	storeStateArray(state, pos);

	return 0;
}


#define _le64toh(x) ((uint64_t)(x))

#define ROTATE(x, b) (uint64_t)( ((x) << (b)) | ( (x) >> (64 - (b))) )

#define HALF_ROUND(a,b,c,d,s,t)			\
	a += b; c += d;				\
	b = ROTATE(b, s) ^ a;			\
	d = ROTATE(d, t) ^ c;			\
	a = ROTATE(a, 32);

#define DOUBLE_ROUND(v0,v1,v2,v3)		\
	HALF_ROUND(v0,v1,v2,v3,13,16);		\
	HALF_ROUND(v2,v1,v0,v3,17,21);		\
	HALF_ROUND(v0,v1,v2,v3,13,16);		\
	HALF_ROUND(v2,v1,v0,v3,17,21);

__device__ uint64_t siphash24_gpu(const void* src, unsigned long src_sz, const char key[16])
{
	const uint64_t* _key = (uint64_t*)key;
	uint64_t k0 = _le64toh(_key[0]);
	uint64_t k1 = _le64toh(_key[1]);
	uint64_t b = (uint64_t)src_sz << 56;
	const uint64_t* in = (uint64_t*)src;

	uint64_t v0 = k0 ^ 0x102030405060708ULL;
	uint64_t v1 = k1 ^ 0x90a0b0c0d0e0f00ULL;
	uint64_t v2 = k0 ^ k1 ^ 0x123456789abcdefULL;
	uint64_t v3 = k1 ^ k0 ^ 0x4953434343435349ULL;

	while (src_sz >= 8) {
		uint64_t mi = _le64toh(*in);
		in += 1; src_sz -= 8;
		v3 ^= mi;
		DOUBLE_ROUND(v0, v1, v2, v3);
		v0 ^= mi;
	}

	uint64_t t = 0; uint8_t* pt = (uint8_t*)&t; uint8_t* m = (uint8_t*)in;
	if (src_sz == 7)
	{
		pt[6] = m[6];
	}
	if (src_sz == 6)
	{
		pt[5] = m[5];
	}
	if (src_sz == 5)
	{
		pt[4] = m[4];
	}
	if (src_sz == 4)
	{
		*((uint32_t*)&pt[0]) = *((uint32_t*)&m[0]);
	}
	if (src_sz == 3)
	{
		pt[2] = m[2];
	}
	if (src_sz == 2)
	{
		pt[1] = m[1];
	}
	if (src_sz == 1)
	{
		pt[0] = m[0];
	}
	b |= _le64toh(t);

	v3 ^= b;
	DOUBLE_ROUND(v0, v1, v2, v3);
	v0 ^= b; v2 ^= 0xff;
	DOUBLE_ROUND(v0, v1, v2, v3);
	DOUBLE_ROUND(v0, v1, v2, v3);
	return (v0 ^ v1) ^ (v2 ^ v3);
}

__global__ void crack(uint8_t* KeyOut, bool* found, uint64_t offset)
{
	// 是否找到
	if (atomicOr((int*)found,0))
		return;

	uint64_t tid = blockIdx.x * blockDim.x + threadIdx.x;

	if (tid > 94ULL * 95ULL * 0xffffULL)
	{
		return;
	}

	uint8_t rndList[16];
	uint8_t hash_plaintext[9];
	uint8_t key[16];
	uint8_t out[16];

	const int CHAR_RANGE = 95;
	const int BASE_CHAR = 33;

	// 通过tid生成当前数值
	int rnd_v = tid % 0xFFFF;
	unsigned long long char_pos = tid / 0xFFFF;

	int c3 = BASE_CHAR + (char_pos % CHAR_RANGE);
	char_pos /= CHAR_RANGE;
	int c2 = BASE_CHAR + (char_pos % CHAR_RANGE);
	char_pos /= CHAR_RANGE;
	int c1 = BASE_CHAR + offset;

	if (c1 < 127 && c2 < 127 && c3 < 127)
	{
		// 生成01排列
#pragma unroll
		for (int i = 0; i < 16; i++)
		{
			rndList[i] = i + ((rnd_v >> (15 - i)) & 1);
		}

#pragma unroll
		for (int i = 0; i < 9; i++) {
			hash_plaintext[i] = hash_plaintext_template[i];
		}
		// ISCC{$c1$c2$c3}
		hash_plaintext[5] = c1;
		hash_plaintext[6] = c2;

		hash_plaintext[7] = c3;
		// hash
		uint64_t hash = siphash24_gpu(hash_plaintext, 9, (const char*)rndList);

		// 用hash扩展生成AES密钥
#pragma unroll
		for (int i = 0; i < 8; i++)
		{
			key[i] = (uint8_t)(hash >> (i * 8 & 0x3f));
			key[i * 2 + 1] = (uint8_t)(hash >> (i * -8 + 0x38 & 0x3f));
		}
		// AES解密
		aesDecrypt(key, 16, EncFlag, out, 16);
		if (out[0] == 'I' && out[1] == 'S' && out[2] == 'C' && out[3] == 'C' && out[4] == '{')
		{
			atomicExch((int*)found, 1);
#pragma unroll
			for (int i = 0; i < 16; i++) {
				KeyOut[i] = key[i];
			}
		}
	}
}

int main()
{
	uint8_t EncFlag_user[]{ 0x9f, 0xb3, 0xb8, 0x2f, 0x23, 0x82, 0x19, 0x7d, 0xe7, 0x2a, 0x8b, 0x20, 0x0c, 0x5b, 0x79, 0x72, 0xf7, 0x07, 0xa0, 0x63, 0x53, 0x99, 0x49, 0xc2, 0x51, 0xde, 0x86, 0x1b, 0x87, 0x2f, 0x31, 0x6b, 0xbc, 0xfa, 0x5b, 0x9a, 0x6b, 0x12, 0x16, 0x8b, 0x31, 0xf6, 0x6c, 0x1d, 0x94, 0xba, 0x2f, 0x37 };

	for (int i = 0; i < 48; i++)
		EncFlag_user[i] ^= 0x10;

	cudaMemcpyToSymbol(S, S_user, 256, 0, cudaMemcpyHostToDevice);

	cudaMemcpyToSymbol(inv_S, inv_S_user, 256, 0, cudaMemcpyHostToDevice);

	cudaMemcpyToSymbol(EncFlag, EncFlag_user, 16, 0, cudaMemcpyHostToDevice);

	cudaMemcpyToSymbol(rcon, rcon_user, 40, 0, cudaMemcpyHostToDevice);

	cudaMemcpyToSymbol(hash_plaintext_template, "ISCC{xxx}", 9, 0, cudaMemcpyHostToDevice);

	uint8_t resultKey[16]{};
	bool found_ = false;

	uint8_t* KeyOut;
	bool* found;

	cudaMalloc(&KeyOut, 16 * sizeof(uint8_t));
	cudaMalloc(&found, 1 * sizeof(bool));
	cudaMemset(found, 0, sizeof(bool));

	// 第一个字节在用户层循环
	for (int i = 0; i < 94; i++)
	{
		printf("Tring crack the block %d\n", i);

		const uint64_t TOTAL_COMBINATIONS = 94ULL * 95ULL * 0xffffULL;

		uint64_t blockSize = 256;
		uint64_t gridSize = (TOTAL_COMBINATIONS + blockSize - 1) / blockSize;
		crack << <gridSize, blockSize >> > (KeyOut, found,i);
		cudaDeviceSynchronize();

		cudaMemcpy(&found_, found, 1, cudaMemcpyDeviceToHost);
		if (found_)
		{
			cudaMemcpy(resultKey, KeyOut, 16, cudaMemcpyDeviceToHost);
			printf("Found key: ");
			for (int i = 0; i < 16; i++)
			{
				printf("0x%02x,", resultKey[i]);
			}
			printf("\n");
			cudaMemset(found, 0, 1);
			break;
		}
		else
		{
			printf("No result.\n");
		}
	}
	cudaFree(KeyOut);
	cudaFree(found);
	return 0;
}

获得密钥解密

CUDA爆破得到密钥为：

0x54,0x8e,0x7a,0x3a,0x13,0x57,0xf3,0x00,0x00,0x3a,0x00,0x7a,0x00,0x8e,0x00,0x54

int main()
{
	uint8_t EncFlag[]{ 0x9f, 0xb3, 0xb8, 0x2f, 0x23, 0x82, 0x19, 0x7d, 0xe7, 0x2a, 0x8b, 0x20, 0x0c, 0x5b, 0x79, 0x72, 0xf7, 0x07, 0xa0, 0x63, 0x53, 0x99, 0x49, 0xc2, 0x51, 0xde, 0x86, 0x1b, 0x87, 0x2f, 0x31, 0x6b, 0xbc, 0xfa, 0x5b, 0x9a, 0x6b, 0x12, 0x16, 0x8b, 0x31, 0xf6, 0x6c, 0x1d, 0x94, 0xba, 0x2f, 0x37 };
	uint8_t AesKey[16]{ 0x54,0x8E,0x7A,0x3A,0x13,0x57,0xF3,0x00,0x00,0x3A,0x00,0x7A,0x00,0x8E,0x00,0x54 };
	uint8_t Flag[48]{};

	for (int i = 0; i < 48; i++)
	{
		EncFlag[i] ^= 0x10;
	}

	for (int i = 0; i < 48; i+=16)
	{
		aesDecrypt(AesKey, 16, EncFlag + i, Flag + i, 16);
	}

	printf("%.48s\n", Flag);
	return 0;
}

解密得到Flag：

ISCC{A35_128_51pH4sh_2-4_CTF_K3y3d_H4sh}
